Solar Panel Harness Factory
FRCABLE: Leading Wholesale Manufacturer of Solar Wire Harnesses for PV Panels
FRCABLE has over ten years of experience in photovoltaic connection solutions for large-scale solar projects. FRCABLE develops innovative PV harness products in X-type, Y-type, and T-type structures, helping simplify cable management and module connections. With integrated solutions including PV cables, harnesses, connectors, and trunk cables, FRCABLE makes solar installations more efficient and reliable.
Why Choose FRCABLE Your Wire Harness Manufacturer
Engineered for Harsh Environments
FRCABLE solar harnesses are tested from –40°C to +90°C, UV-aged for outdoor durability.
PV-Rated, Field-Ready Materials
Built with XLPE solar cables, tinned copper conductors, and IP67/IP68 rated connectors for performance.
One-Stop Solar Harness Manufacturing
FRCABLE provides one-stop solar harness solutions with and custom assemblies for installations.
Supply Experience
Serving distributors, EPC contractors, and utility-scale solar projects worldwide.
Product Performance
Excellent UV resistance, weather resistance, and long-term outdoor durability.
No Counterfeit Components
Comprehensive testing processes help ensure safe and stable photovoltaic power transmission.
Solar Harness Testing & Quality
Continuity and Polarity Testing
Every harness is continuity-tested to ensure accurate conductor routing and reliable electrical connections.
Insulation Resistance Testing
Each harness undergoes insulation resistance testing at 1000VDC or 1500VDC for reliable electrical safety.

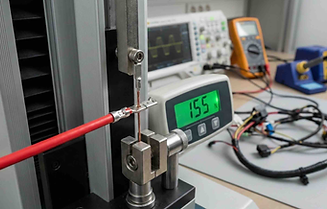

Pull-Force Validation
Pull-force testing verifies connector and cable termination strength for secure, long-lasting photovoltaic connections.
FAQs of FRCABLE'S Solar Wire Harnesses for PV Panels
1. How do I choose the correct wire gauge (AWG) for a multi-panel solar harness?
The correct gauge depends on the total combined current of your solar array and the cable run distance. For individual panel connections, 10 AWG or 12 AWG wires are standard. However, because a wire harness combines the electrical output of multiple panels, the main "trunk" line carries a much higher current. To prevent overheating and minimize voltage drop, the main trunk line of the harness must be sized up, often requiring 8 AWG, 6 AWG, or even larger cables, depending on your local electrical codes (like the NEC).
2. Are over-molded solar wire harnesses completely waterproof and safe for outdoor use?
High-quality solar wire harnesses are heavily engineered for harsh outdoor environments. Unlike manually crimped field connections, FRCABLE’s over-molded harness junctions provide superior sealing, typically achieving an IP67 or IP68 waterproof rating. This means they are fully protected against dust ingress and can withstand heavy rain or temporary submersion. Paired with UV-resistant XLPE insulation, they guarantee safe performance across a 25-to-30-year lifespan.
3. Can I use a solar wire harness to wire my solar panels in parallel?
Yes, that is one of their primary applications. Solar wire harnesses featuring Y-branch or custom multi-branch connectors are specifically designed to connect multiple solar panels in parallel. Wiring in parallel increases the total current (amps) while keeping the overall voltage of the system the same. This is highly effective for systems dealing with partial shading or when you need to match specific micro-inverter or charge controller limits.
4. What is a solar wire harness, and how is it different from standard PV wire?
A standard PV wire is a single, continuous length of cable used to connect solar components. A solar wire harness, however, is a pre-manufactured assembly that combines multiple wires, custom lengths, integrated connectors (like MC4), and over-molded junctions (such as Y-branches or T-branches) into a single unit. Harnesses are designed to simplify complex wiring layouts, neatly and safely routing power from multiple solar panels to the combiner box or inverter.
5. Why are utility-scale solar developers switching to pre-assembled custom solar wire harnesses?
For EPC contractors and utility-scale developers, minimizing labor costs and installation time is critical. Pre-assembled, custom solar wire harnesses (such as trunk cables with multiple branch drops) offer a "plug-and-play" solution. This eliminates the need for manual cutting, stripping, crimping, and testing of thousands of connections in the field. By utilizing FRCABLE's factory-tested harnesses, developers drastically reduce Balance of System (BOS) costs, eliminate human installation errors, and significantly accelerate project commissioning.
