UL4703 vs IEC 62930 vs EN 50618: What’s the Real Difference in Solar Cable Standards?

Solar energy system wiring is the circulatory system of any photovoltaic (PV) project. Even with top-tier solar panels and cutting-edge inverters, a PV system will rapidly degrade—or worse, pose severe fire risks—if the DC power cables connecting them cannot withstand decades of brutal environmental exposure.

To ensure safety, performance, and durability, the global solar industry relies on strict certification frameworks. But with overlapping regulations across different continents, procurement teams and electrical engineers often face a critical question: Which solar cable standard is best for PV systems? If you are navigating the complexities of photovoltaic cable requirements, you will inevitably encounter the "Big Three" standards: UL 4703, EN 50618, and IEC 62930.

Understanding the technical and geographic nuances of these standards is not just about checking a compliance box; it is about ensuring the 25-year operational lifespan of your commercial or residential solar projects.

The Core Difference in Solar Cable Standards (Quick Answer)

The primary difference between UL 4703, EN 50618, and IEC 62930 lies in geographic jurisdiction and material safety requirements.

• UL 4703 is the standard used in the USA and North America, heavily focused on thick XLPE insulation, high mechanical toughness, and direct-burial capabilities required by the National Electrical Code (NEC).

• EN 50618 is the European standard (defining the well-known H1Z2Z2-K cable), which strictly requires Low Smoke Zero Halogen (LSZH) materials to prevent toxic gas emissions during a fire.

• IEC 62930 is an internationally recognized standard that closely mirrors EN 50618 but is utilized globally in regions outside of North America and Europe, such as Asia, the Middle East, and South America.

Key Takeaways

• Geography dictates compliance: Use UL 4703 for North America, EN 50618 for Europe, and IEC 62930 for international/emerging markets.

• Voltage limits vary: EN 50618 and IEC 62930 cables are uniformly rated for 1500V DC. UL 4703 cables can be rated for 600V, 1000V, or 2000V DC depending on the specific application.

• Fire safety differences: European and International standards (EN/IEC) mandate Low Smoke Zero Halogen (LSZH) properties. UL 4703 does not inherently require LSZH, focusing instead on heavy-duty flame retardancy and mechanical strength.

• TÜV Certification: You will often see EN 50618 and IEC 62930 grouped together under TÜV solar cable certifications due to their nearly identical testing parameters.

Why Solar Cable Standards Matter More Than Ever

DC solar cable standards exist because standard electrical wiring cannot survive a solar farm.

PV system components are exposed to a unique combination of extreme stressors. Cables are subjected to punishing UV radiation, extreme temperature fluctuations (from freezing winters to blistering roof-mounted summers), ozone exposure, and persistent moisture. Furthermore, commercial solar projects are increasingly shifting to higher voltages (up to 1500V DC) to reduce transmission losses, which places massive dielectric stress on cable insulation.

To guarantee a cable's durability and lifespan, regulatory bodies put solar panel wiring through rigorous testing. A certified cable guarantees double insulated, weather-resistant, and UV-resistant properties. Choosing the wrong standard can lead to insulation breakdown, ground faults, arc fires, and rejected final inspections by local authorities.

Let’s break down the technical realities of each standard.

A Deep Dive into UL 4703 (The North American Standard)

If you are asking, "what solar cable standard is used in the USA?", the answer is UL 4703. Created by Underwriters Laboratories, this standard outlines the specific requirements for Photovoltaic Wire (PV Wire) intended for use in wiring solar panels under the US National Electrical Code (NEC).

Historically, the US solar industry used USE-2 (Underground Service Entrance) cables. However, as solar modules moved from grounded systems to ungrounded systems, the need for thicker, more robust insulation became apparent. UL 4703 was introduced to provide superior environmental resilience.

Key Specifications and Testing

• Voltage Ratings: Available in 600V, 1000V, and 2000V ratings.

• Insulation: Features incredibly robust XLPE (Cross-Linked Polyethylene) insulation. Compared to European standards, UL 4703 cables generally have a thicker insulation wall, making them highly resistant to crush and impact damage.

• Testing Rigor: UL subjects these cables to intense sunlight resistance testing (usually 720 hours in a weatherometer), cold impact tests, and direct burial tests.

• Conductor Type: Can be constructed with stranded copper, aluminum, or copper-clad aluminum, allowing for flexibility in utility-scale procurement.

Ideal Use Cases

UL 4703 is the non-negotiable legal requirement for utility-scale solar farms, commercial rooftops, and residential arrays in the United States and Canada. Its thick jacket makes it the ideal choice for projects requiring direct burial without conduit.

Understanding EN 50618 and the H1Z2Z2-K Cable (The European Standard)

For projects in the European Union and the UK, EN 50618 is the law of the land. Introduced by the European Committee for Electrotechnical Standardization (CENELEC), it replaced the older, outdated PV1-F TÜV standard.

When you see the term H1Z2Z2-K cable, it is referring directly to a cable manufactured to the EN 50618 standard. The complex naming convention actually describes the cable's construction: "H" stands for harmonized, "1" for 1500V, "Z2" for cross-linked halogen-free insulation and sheath, and "K" for fine wire stranded copper.

Key Specifications and Testing

• Voltage Ratings: Exclusively rated for 1500V DC (and 1000V AC).

• Safety Focus (LSZH): The defining feature of EN 50618 is its strict requirement for Low Smoke Zero Halogen (LSZH) materials. In the event of a fire, this cable will not emit dark, vision-obscuring smoke or toxic, corrosive halogen gases.

• Thermal Endurance: Designed to operate continuously at 90°C and can withstand up to 120°C for up to 20,000 hours, ensuring exceptional long-term stability.

• Conductor Type: Strictly mandates Class 5 flexible stranded tinned copper. Aluminum is not permitted under this specific harmonized code.

Ideal Use Cases

What cable standard is used in Europe solar systems? EN 50618. It is the absolute requirement for European projects. The LSZH requirement also makes the H1Z2Z2-K cable heavily preferred for roof-mounted commercial solar projects, public buildings, and integrated PV systems where fire safety and human evacuation are top priorities.

Demystifying IEC 62930 (The Global Standard)

The International Electrotechnical Commission (IEC) introduced IEC 62930 to create a unified, global benchmark for DC solar cables. Because solar supply chains are global, having a harmonized standard prevents manufacturers from having to reinvent the wheel for every emerging market.

Key Specifications and Testing

• Voltage Ratings: 1500V DC.

• Testing Parity: IEC 62930 shares virtually all of its core testing parameters with EN 50618. It requires weather-resistant cable properties, double insulation, and extensive thermal endurance testing.

• Halogen-Free Requirements: Like its European counterpart, IEC 62930 standardizes the use of halogen-free, flame-retardant cable materials.

How IEC 62930 Relates to EN 50618

Are IEC 62930 and EN 50618 the difference? Functionally, very little. The two standards are practically identical in their material and electrical requirements. The distinction is purely jurisdictional. EN 50618 is a CENELEC standard strictly for Europe, while IEC 62930 is the international version. Today, premium cable manufacturers—like those at FR-CABLE—often produce PV wire that achieves dual TÜV solar cable certification for both IEC 62930 and EN 50618 simultaneously.

Side-by-Side Comparison: UL4703 vs IEC 62930 vs EN 50618

To help procurement managers visualize the UL4703 vs IEC 62930 comparison, here is a breakdown of their core attributes:

Feature	UL 4703 (USA / North America)	EN 50618 (Europe)	IEC 62930 (Global/International)
Common Cable Designation	PV Wire / PV Cable	H1Z2Z2-K	IEC 62930 PV Cable
Max DC Voltage	600V, 1000V, 2000V	1500V DC	1500V DC
Conductor Material	Copper, Aluminum, or Copper-Clad	Tinned Copper (Class 5 flexible)	Tinned Copper
LSZH (Halogen-Free)	Not Required (Available as custom)	Mandatory	Mandatory
Insulation Thickness	Generally thicker; high crush resistance	Thinner; highly flexible	Thinner; highly flexible
Direct Burial	Yes, specifically rated for it	Usually requires conduit underground	Usually requires conduit underground

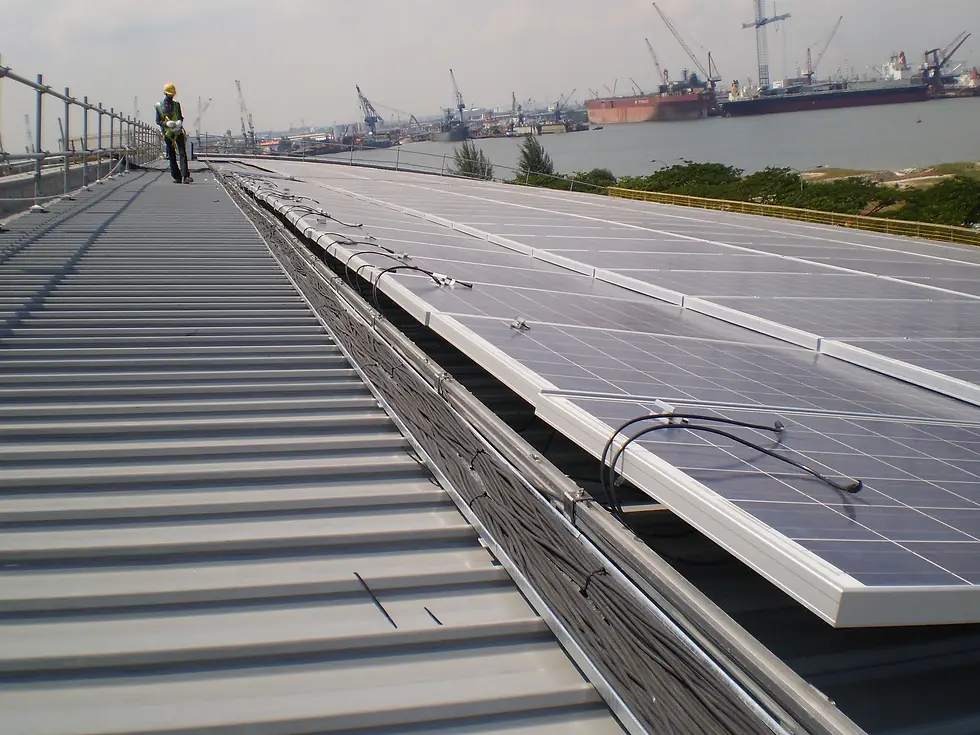

How to Choose the Right Solar Cable Standard for Your PV System

Selecting the correct standard should not be left to guesswork. Use the following framework to dictate your cable procurement strategy:

1. Geographical Compliance

Your first filter is always location.

• If your project is in the United States, you must use UL 4703. Inspectors will reject systems utilizing European or IEC cables that lack the UL stamp, as they do not comply with the National Electrical Code (NEC).

• If your project is in Germany, Spain, the UK, or anywhere else in Europe, you must source EN 50618 (H1Z2Z2-K) cables.

• If you are building in Australia, the Middle East, Southeast Asia, or Africa, local grid authorities will typically require IEC 62930 (or accept dual-rated EN/IEC cables).

2. Environmental Conditions and Cable Durability

If you are designing a utility-scale solar farm where miles of cable will be buried directly in the earth without protective conduit, UL 4703's thicker insulation profile offers superior crush and moisture resistance.

Conversely, if you are wiring a complex commercial rooftop where flexibility and tight bending radii are required, the Class 5 fine stranded copper of an EN 50618 / IEC 62930 cable is much easier for installers to work with.

3. Commercial vs. Residential Requirements

For residential systems, flexibility and ease of installation are key. In Europe, the H1Z2Z2-K is perfect for navigating tight attic spaces and roof lines. In the US, a highly flexible, stranded copper UL 4703 wire is preferred.

For large-scale commercial solar projects and microgrids, the conversation shifts to fire safety. Commercial buildings with high occupancy benefit tremendously from the Low Smoke Zero Halogen (LSZH) properties inherently found in EN 50618 and IEC 62930 standards, minimizing collateral damage and health risks during a building fire.

Why Quality Matters Beyond the Certificate

A certification stamp proves a cable passed a test in a laboratory; it does not guarantee the manufacturer maintained tight quality control during mass production.

When dealing with high temperature cable rated for 25+ years of continuous outdoor exposure, the purity of the copper, the precision of the cross-linking process (XLPE), and the exact chemical makeup of the UV resistant cable jacket dictate real-world survival. Subpar manufacturing can lead to micro-cracking in the insulation within just a few years, leading to system downtime.

This is why top EPCs partner with specialized manufacturers who prioritize stringent, in-house quality assurance on top of base-level TÜV and UL certifications.

Conclusion: Specifying Cables with Confidence

The debate of UL4703 vs IEC 62930 vs EN 50618 is ultimately a question of where your project is located and what specific environmental and safety protocols you must meet.

UL 4703 is the heavyweight champion of North America, offering rugged, thick insulation suitable for direct burial and high voltages. EN 50618 and IEC 62930 are the global standards, prioritizing extreme flexibility, 1500V DC capacity, and the critical life-saving properties of halogen-free, low-smoke materials.

By understanding these solar cable specifications, your engineering and procurement teams can confidently design systems that satisfy inspectors, protect investments, and harness the sun's energy reliably for a generation.

Frequently Asked Questions (FAQ)

What is the difference between UL4703 and EN50618?

The main difference is geographic regulation and material composition. UL 4703 is the North American standard requiring thicker insulation and allowing for direct burial and aluminum conductors. EN 50618 is the European standard that strictly requires tinned copper conductors and Low Smoke Zero Halogen (LSZH) insulation for enhanced fire safety.

What is H1Z2Z2-K cable?

H1Z2Z2-K is the harmonized designation for a solar cable manufactured to the European EN 50618 standard. It is a highly flexible, double-insulated, halogen-free, and UV-resistant cable rated for 1500V DC, making it the standard choice for European PV systems.

Can I use UL4703 cables in Europe, or vice versa?

No. US electrical inspectors require UL-listed products to comply with the National Electrical Code (NEC). European inspectors require EN 50618 compliance. While their performance capabilities are similar, their certifications are not legally interchangeable.

Are IEC 62930 and EN 50618 the same?

Functionally, they are almost identical. EN 50618 is the standard localized for Europe via CENELEC, while IEC 62930 is the international version. Many high-quality solar cables are dual-certified to meet both standards simultaneously.

What solar cable standard is used for 1500V DC systems?

All three standards support 1500V DC systems. EN 50618 and IEC 62930 are inherently rated for 1500V DC. UL 4703 cables can be manufactured and rated for 600V, 1000V, or up to 2000V DC, easily covering the 1500V requirement for utility-scale solar farms.
