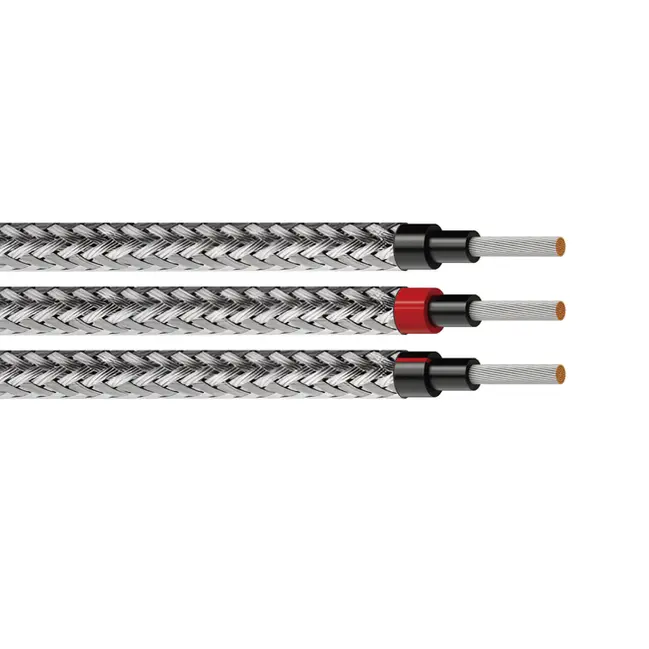

FRCABLE Anti-rodent Solar EN50618 H1Z2Z2-K & IEC 62930
-

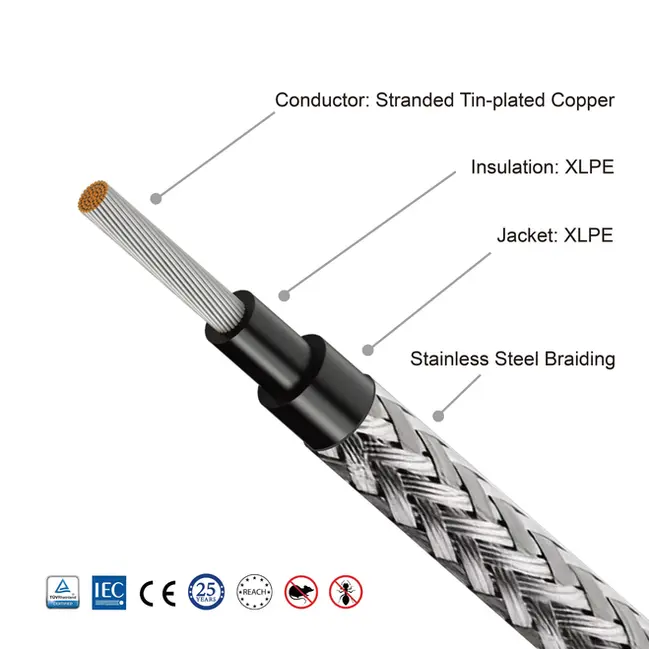

Conductor:
-
Insulation:
-
Jacket:
-
Rated temperature:
-
Rated voltage:
Stranded tin-plated copper
Cross-linked compound, Black
Cross-linked compound, Black or Red
-40℃ to 90℃
1500V DC
Application
DC Solar cable is TÜV EN50618 and IEC 62930 certified and designed for the connection of PV panels.Engineered to withstand harsh outdoor environments, the H1Z2Z2-K cable boasts superior UV resistance, Ozone resistance,and water resistance, ensuring a reliable and long-lasting connection within your solar power system.Its stainless steel braiding designs ensure durability, especially in areas with high animal populations.
Advantages
-
Electron Beam Cross Linked compound, XLPE/XLPE.
-
Resistance against UV, Ozone, Fluids, Oil, Salt & General Weathering.
-
Halogen Free, Flame Retardant, Low Smoke Emission.
-
25 years of lifetime expectancy.
-
RoHS-compliant according to EU norms.
-
Higher water resistance.
-
Encased in stainless steel to prevent rats from biting.
Technical Data
-
Operation temperature: -40℃ to 120℃
-
Ambient temperature: -40℃ to 90℃
-
Nominal voltage: AC U0/U 1000/1000 V、DC U0/U 1500/1500 V
-
Max permitted operation voltage: DC 1800V
-
Test voltage: 6500 V
Item Data
Item description
Part No.
Cross Section
(mm²)
Color
AWG
(approx)
Insulation Thickness
(mm)
Jacket Thickness
(mm)
Outer Dia
(mm)
Conductor Resistance
Max. mΏ/m
511127040705
1 x 4.0 mm²
Black
12
0.70
0.90
6.2±0.2
5.09
0.50
511127040806
1 x 4.0 mm²
Red
12
0.70
0.90
6.2±0.2
5.09
0.50
511127060707
1 x 6.0 mm²
Black
10
0.70
0.90
6.7±0.2
3.39
0.50
511127060808
1 x 6.0 mm²
Red
10
0.70
0.90
6.7±0.2
3.39
0.50
511127010709
1 x 10 mm²
Black
8
0.70
0.80
7.7±0.2
1.95
0.50
511127010810
1 x 10 mm²
Red
8
0.70
0.80
7.7±0.2
1.95
0.50
Steel braid Thickn
(mm)(approx)
Downloads
Related Products
FAQs
1. What is FRCABLE Anti-Rodent Solar EN50618 H1Z2Z2-K & IEC 62930 Cable?
This is a 1500V DC-rated photovoltaic cable with anti-rodent protection, fully compliant with EN50618 (H1Z2Z2-K) and IEC 62930 standards. It is specifically engineered to prevent damage from rodents like rats or squirrels in solar installations.
2. How does this cable resist rodent damage?
The cable’s outer sheath includes anti-rodent additives or protective materials that deter chewing and gnawing. This extends the service life of the solar cable and reduces the risk of system failure due to animal intrusion.
3. Where is this anti-rodent solar cable typically used?
It is ideal for ground-mounted solar farms, rooftop PV systems, agricultural installations, and industrial solar sites where cables are exposed to rodents and wildlife.
4. What standards does this cable comply with?
This cable meets EN50618 (H1Z2Z2-K) and IEC 62930 standards, ensuring high mechanical strength, flame retardancy, UV resistance, and long-term weather durability for solar DC circuits.
5. Is this cable suitable for outdoor and underground installation?
Yes. It is designed for direct burial, rooftop mounting, conduit systems, and other outdoor or semi-exposed environments where rodents may be present.
6. What voltage and temperature performance does this cable offer?
This cable is rated up to 1500V DC and functions in a temperature range of -40°C to +120°C, offering stable performance in harsh environmental conditions.
7. Is this cable halogen-free and flame-retardant?
Yes. It is made with halogen-free, low-smoke, flame-retardant compounds, ensuring safety in case of fire and reducing toxic emissions.
8. Why choose FRCABLE as your anti-rodent solar cable supplier?
FRCABLE is a top-tier PV cable manufacturer in China, offering rodent-resistant, EN50618 and IEC 62930-certified solar cables with consistent quality, fast delivery, OEM customization, and technical support for EPCs, distributors, and installers globally.
