Introduction

In electrical engineering and home wiring, selecting the correct wire gauge is not only about performance but also directly related to safety. 4 AWG wire is a commonly used medium-to-large size cable, widely applied in residential, industrial, automotive, and marine scenarios.

This article provides a comprehensive analysis of 4 AWG wire, covering specifications, material choices, application scenarios, installation standards, and purchasing recommendations.

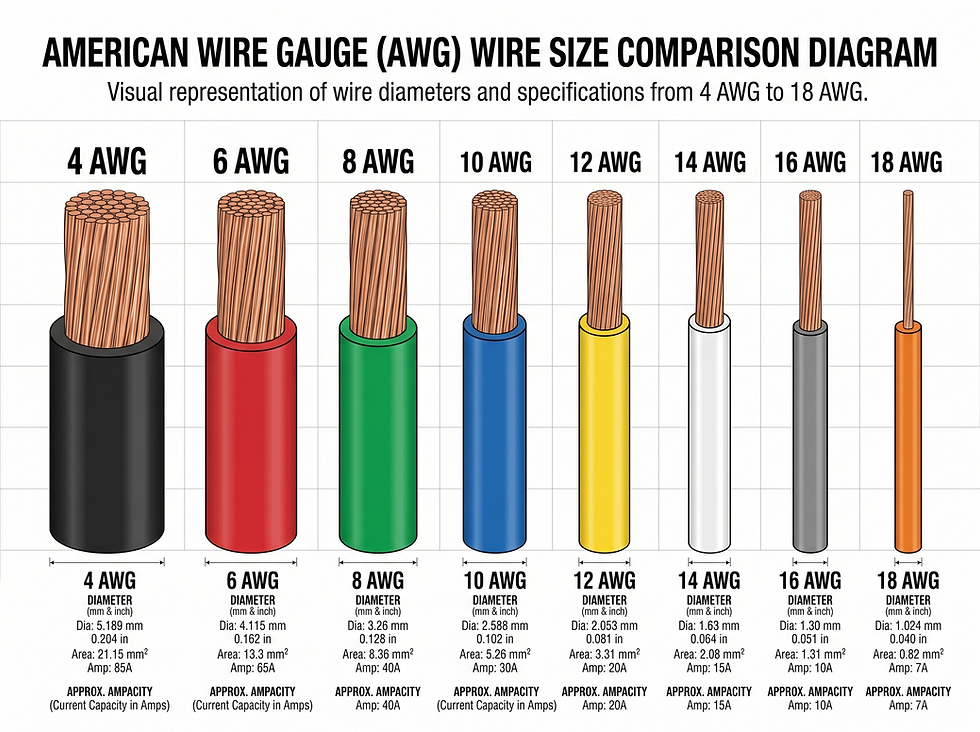

What is 4 AWG Wire?

In North America, wire sizes are measured using the AWG (American Wire Gauge) standard.

• Diameter: 4 AWG has a diameter of about 5.189 mm (0.2043 inches).

• Cross-sectional area: Approximately 21.15 mm², considered a thick wire.

• Ampacity: For copper, typically 85–95A (depending on insulation and temperature rating).

• Applications: Residential subpanels, automotive battery cables, marine battery systems, industrial power lines, etc.

In other words, 4 AWG wire is not a small household wire, nor is it an oversized cable—it is a golden size for medium-to-high current applications.

Key Specifications of 4 AWG Wire

Note: The actual ampacity depends on installation method, ambient temperature, and insulation type. Always refer to local electrical codes (e.g., NEC).

Common Applications of 4 AWG Wire

Residential and Commercial Wiring

• Connection between main service panel and subpanels

• High-power appliances (electric ovens, water heaters, EV chargers)

• Medium-length high-current circuits

Industrial Applications

• Power supply for factory equipment

• Branch connections inside distribution cabinets

• Solar systems: between batteries and inverters

Automotive and Marine

• Battery connections for yachts and RVs

• High-power car audio systems

• Starter motors and inverter power supply

Renewable Energy

• Connection from solar arrays to combiner boxes

• Wiring from wind turbines to controllers

Common feature: These scenarios all require carrying high current while meeting strict electrical safety standards.

Copper vs. Aluminum: Which 4 AWG Wire is Better?

When purchasing, you need to choose between copper conductor and aluminum conductor.

• Copper 4 AWG Wire

✔ Higher conductivity (lower resistance)

✔ Better flexibility, easier to bend

✔ Stronger corrosion resistance

✘ Higher cost, heavier weight

• Aluminum 4 AWG Wire

✔ More affordable

✔ Lighter, easier to install

✘ Lower conductivity (higher resistance, may require upsizing)

✘ Prone to oxidation, needs anti-oxidant paste and special connectors

Insulation Types

The performance of 4 AWG wire depends not only on the conductor but also on the outer insulation material.

• THHN / THWN-2: Most common, heat- and moisture-resistant, suitable for conduit wiring.

• XHHW-2: High temperature and moisture resistance, common in commercial/industrial settings.

• USE-2: Suitable for underground or solar systems.

• Flexible Welding Cable: Extremely flexible, often used for battery connections or mobile equipment.

When selecting, consider: environment (dry, damp, underground), temperature rating, and flexibility requirements.

Real-World Case Studies

• Case 1: Home EV Charger Installation

A household installs a 40A-rated Level 2 EV charger with a 15-meter distance from the panel. According to NEC, 4 AWG copper wire with THHN insulation should be used to ensure safe operation and minimize voltage drop.

• Case 2: Marine Battery System

A yacht requires wiring between its battery and inverter with high current demand (over 150A) but short distance. The best choice is 4 AWG flexible copper welding cable, ensuring conductivity and flexibility while withstanding vibration.

• Case 3: Industrial Distribution

A workshop needs wiring for a 20kW machine with operating current of 80–90A. 4 AWG copper XHHW-2 cable is used in a metal cable tray, meeting heat- and wear-resistance requirements.

Voltage Drop and Distance Calculation

The longer the wire, the greater the resistance and voltage drop. For 4 AWG copper wire:

• At 85A, it produces about 0.25V drop per 100 feet.

• For runs over 50 feet, consider upsizing to 2 AWG to reduce losses.

Engineering tip: Keep voltage drop below 3%, especially for motors and sensitive electronics.

Installation Tips for 4 AWG Wire

• Step 1: Calculate Load Requirements

Before installation, calculate the total amperage of your system to confirm that 4 AWG is the correct size.

• Step 2: Choose the Right Material

Copper is the preferred choice for most installations due to its higher conductivity. Aluminum is cheaper but requires larger wire size adjustments.

• Step 3: Select Proper Insulation

Pick insulation rated for the environment—THHN for dry locations, XHHW for wet or underground.

• Step 4: Ensure Proper Connections

Use lugs and connectors rated for 4 AWG wire. Improper connections can cause overheating.

• Step 5: Follow NEC and Local Codes

Always comply with NEC and local electrical codes for safety and compliance.

How to Buy High-Quality 4 AWG Wire

• Certification: Prefer UL / CSA certified cables.

• Application environment: Choose insulation based on indoor, outdoor, underground, or marine use.

• Conductor material: Copper for performance, aluminum for budget.

• Wire structure: Solid wire for fixed installations, stranded for mobile or vibrating environments.

Purchasing Channels

• Home improvement stores (Home Depot, Lowe’s) for small quantities

• Wholesale suppliers for bulk purchases

• Amazon / e-commerce platforms (check seller credibility)

Frequently Asked Questions (FAQs)

Q1: How many amps can 4 AWG wire handle?

• Copper: Up to 95 amps

• Aluminum: Around 75 amps

Q2: Can I use 4 AWG wire for a 100-amp subpanel?

• Yes, but typically only for short distances. For longer runs, you may need 2 AWG.

Q3: Is 4 AWG wire suitable for solar systems?

• Absolutely. It is commonly used to connect inverters, charge controllers, and battery banks.

Q4: Is stranded 4 AWG better than solid?

• Stranded wire is more flexible and easier to work with, while solid wire is stiffer and harder to bend.

Q5: What is the maximum length for 4 AWG wire?

• For a 240V system, the recommended maximum run is about 150 feet before significant voltage drop occurs.

Conclusion

4 AWG wire is a medium-sized cable balancing safety and cost-effectiveness, widely used in homes, industries, and renewable energy systems.

• For performance and durability, copper is the preferred choice.

• For budget-sensitive projects with long runs, aluminum may be considered.

• Insulation type must match the environment (dry, damp, underground, outdoor).

• Always follow electrical codes and safety standards for reliable long-term operation.

If you are looking for high-quality 4 AWG wire, choose suppliers with certification and reputation, and select insulation and conductor type according to your specific scenario.
