Introduction
Sizing wire for an EV charging circuit sounds straightforward until you actually start working through the numbers. The question — is 4 AWG copper wire suitable for an 80A EV charger? — comes up constantly among homeowners planning Level 2 charger installations, electricians quoting residential EV work, and contractors deploying commercial charging infrastructure.
The confusion is understandable. 4 AWG copper wire has a standard NEC ampacity of 85A under 75°C conditions, which appears to exceed the 80A charger rating by a comfortable margin. On the surface, it looks like a match.
But EV charging is classified as a continuous load under the National Electrical Code — and continuous loads trigger a 125% sizing requirement that fundamentally changes the calculation. What looks like sufficient capacity on a simple ampacity comparison often falls short once NEC rules are properly applied.
This guide provides the complete, technically accurate answer. You will find:
How NEC continuous load rules apply to EV charging circuits
When 4 AWG copper is genuinely code-compliant for 80A charger installations
When it is not — and what conductor size is actually required
How installation conditions, terminal ratings, and ambient temperature affect the decision
Voltage drop analysis for long-run installations
A practical wire sizing table covering the most common residential and commercial Level 2 charger configurations
How NEC Classifies EV Charging: Why Continuous Load Rules Change Everything
What Makes EV Charging a Continuous Load
The National Electrical Code (NEC) defines a continuous load as any load anticipated to operate for three hours or more without interruption.
Electric vehicle charging fits this definition clearly. Overnight residential charging sessions routinely run six to twelve hours. Commercial workplace and fleet charging often runs throughout business hours. Even a partial charge on a large-battery vehicle commonly exceeds three hours at typical Level 2 charging rates.
This matters because the NEC treats continuous loads differently from non-continuous loads in conductor and overcurrent device sizing.
NEC 210.19 and 215.2: The 125% Continuous Load Rule
NEC Section 210.19(A)(1) governs branch circuit conductor sizing and states that conductors must be sized for the non-continuous load plus 125% of the continuous load.
NEC Section 215.2 applies the same principle to feeder conductors.
For a purely continuous load — which is how EV charging is typically treated — this simplifies to:
Required conductor ampacity = Charger continuous output × 1.25
This is the calculation that changes the answer to the question most people think they already know.
How the 125% Rule Applies to an 80A EV Charger
Applying this to an 80A charger output:
80A × 1.25 = 100A required conductor ampacity
The branch circuit must support 100A of continuous capacity — not 80A.
This immediately reveals why 4 AWG copper, with its 85A ampacity at 75°C, is insufficient for a true 80A continuous EV charging load under standard NEC application.
NEC Article 625: EV-Specific Requirements
NEC Article 625 specifically governs electric vehicle charging system equipment. Several provisions are directly relevant to conductor sizing:
NEC 625.40 — EV Branch Circuit:EV charging equipment must be supplied by a dedicated branch circuit. No other loads are permitted on this circuit.
NEC 625.41 — Rating of EV Branch Circuit:The branch circuit rating must not be less than 125% of the maximum load of the EV supply equipment.
NEC 625.42 — Loss of Primary Source:Specific requirements for bidirectional charging equipment (relevant for V2G-capable systems).
The combination of NEC 210.19, 215.2, and 625.41 creates a consistent message: size for 125% of the charger's rated output current. There is no ambiguity in the code language — EV charging loads are continuous loads, and continuous loads require the 125% multiplier applied to conductor ampacity.
4 AWG Copper Wire: Ampacity, Temperature Ratings, and Terminal Limits
NEC Ampacity for 4 AWG Copper Under Standard Conditions
NEC Table 310.16 provides conductor ampacity for cables installed in raceways, cables, or earth at an ambient temperature of 30°C (86°F) with no more than three current-carrying conductors.
For 4 AWG copper:
Insulation Temperature Rating | NEC Ampacity (4 AWG Copper) |
60°C (140°F) | 70A |
75°C (167°F) | 85A |
90°C (194°F) | 95A |
These are the maximum allowable ampacities under ideal installation conditions — not derated, not adjusted for conduit fill, not corrected for elevated ambient temperature.
Why Terminal Temperature Ratings Control Usable Ampacity
This is where many sizing decisions go wrong.
NEC 110.14(C) establishes a critical rule: conductors must be selected based on the lowest temperature rating of any connected termination — regardless of the insulation temperature rating of the conductor itself.
In practice:
Most residential circuit breakers, load centers, and EVSE terminals are rated for 75°C
Some older equipment carries only a 60°C terminal rating
Certain industrial and commercial equipment is rated for 75°C or 90°C
This means:
Even if you install 90°C-rated THHN (which has a 95A conductor ampacity at 4 AWG), you must size it using the 75°C column if the breaker and charger terminals are rated at 75°C
The conductor insulation rating does not override the terminal rating limitation
For most residential EV charger installations:
4 AWG copper in THWN-2 or THHN insulation
75°C-rated breaker and charger terminals
Usable ampacity = 85A
This is the baseline from which all further adjustments and calculations must be made.
Physical Properties of 4 AWG Copper Wire
Understanding the physical characteristics of 4 AWG copper informs both the ampacity discussion and the installation reality:
Conductor diameter: 5.189 mm (0.2043 inches)
Cross-sectional area: 21.15 mm²
Metric equivalent: approximately 25 mm²
DC resistance at 75°C: approximately 0.2778 Ω per 1000 feet
Weight: approximately 126 lbs per 1000 feet
Typical conduit fill: requires ¾" conduit for a single conductor; 1" conduit for three conductors of this size
Physically, 4 AWG is a substantial conductor that most electricians can install without mechanical pulling assistance on reasonable runs. It bends with hand effort, fits standard conduit bodies, and terminates in most residential-grade breakers without special tooling — making it a practical choice where it is technically appropriate.
The Critical Question: What Does "80A EV Charger" Actually Mean?

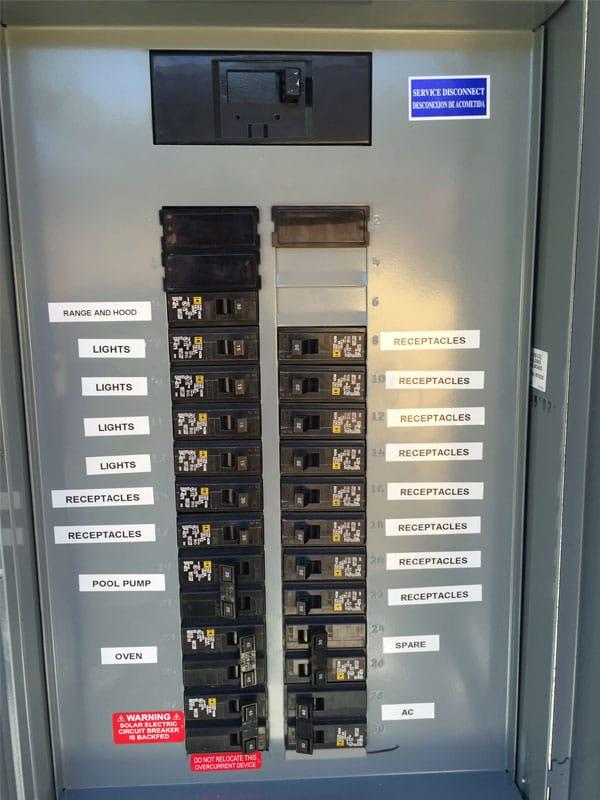

Charger Output vs Circuit Breaker Rating: Two Different Numbers
One of the most persistent sources of confusion in EV charger wiring is the relationship between:
The charger's rated output current (what the vehicle receives)
The circuit breaker size (overcurrent protection for the branch circuit)
The conductor ampacity (what the wire must support)
These are three distinct parameters that follow a specific NEC-governed relationship — and they are frequently conflated in marketing materials, online forums, and even some installation guides.
NEC 625.41 establishes the relationship clearly:
The branch circuit rating shall not be less than 125 percent of the maximum load of the EV supply equipment.
This means:
Charger Output Current × 1.25 = Minimum Branch Circuit Rating = Minimum Breaker Size
And the conductor must be rated for that branch circuit current — not just the charger output.
The 80A Breaker / 64A Charger Configuration
The most common source of 4 AWG appearing in 80A charger discussions is this specific configuration:
EVSE rated output: 64A continuous
Required branch circuit: 64A × 1.25 = 80A
Breaker size: 80A
Required conductor ampacity: 80A
4 AWG copper at 75°C: 85A ✅
In this configuration — a charger with 64A output on an 80A circuit — 4 AWG copper is typically code-compliant under standard NEC installation conditions.
This is the configuration behind most real-world 4 AWG EV charging installations and represents a legitimate, code-supported application of this conductor size.
The True 80A Charger Configuration
A genuinely different scenario exists when the charger's rated output is 80A continuous:
EVSE rated output: 80A continuous
Required branch circuit: 80A × 1.25 = 100A
Breaker size: 100A
Required conductor ampacity: 100A
4 AWG copper at 75°C: 85A ❌
In this configuration, 4 AWG copper falls short by 15A. 3 AWG copper (100A at 75°C) becomes the minimum NEC-compliant conductor, and many installers choose 2 AWG copper (115A at 75°C) for additional margin.
Why the Distinction Matters Practically
The difference between these two scenarios is not splitting hairs. It determines:
Whether your installation passes inspection
Whether your homeowner's insurance coverage holds in the event of a fire
Whether the EV charger manufacturer's warranty remains valid
Whether the installation is bankable for a commercial project financed by institutional lenders
Treating a true 80A charger as equivalent to a 64A charger on an 80A circuit is a code violation with real consequences.
When 4 AWG Copper Is Code-Compliant for EV Charging
Condition 1: The Charger Output Is 64A or Less on an 80A Circuit
This is the most straightforward legitimate use case.
Charger maximum output: 64A
NEC calculation: 64A × 1.25 = 80A
Branch circuit breaker: 80A
Required conductor ampacity: 80A
4 AWG copper at 75°C: 85A ✅
Verdict: Code-compliant under standard installation conditions
Many popular residential Level 2 chargers — including configurations of the Tesla Wall Connector, ChargePoint Home Flex, Emporia Smart Charger, and similar EVSE units — operate in this range when set to their intermediate output levels.
Condition 2: Manufacturer Installation Instructions Specify 4 AWG
NEC 110.3(B) requires that listed and labeled equipment be installed in accordance with its listing and labeling instructions.
If an EVSE manufacturer's installation manual specifies 4 AWG copper as acceptable for the configuration being installed, that specification carries code authority.
Always download and read the current installation manual for the specific charger model and output configuration before finalizing wire sizing. Manufacturer specifications occasionally differ from what generic sizing guides suggest, and NEC 110.3(B) gives those specifications binding status.
Condition 3: EVSE Set to Reduced Output (Adjustable Chargers)
Many modern Level 2 chargers are software-adjustable. A unit capable of 80A output may be configured to deliver 48A or 64A through the EVSE app or installer settings.
If the charger is permanently configured and locked at a lower output — and the installation is documented accordingly — the wire sizing may be based on the configured output rather than the hardware maximum.
Important caution: Verify that the charger cannot be remotely or user-reconfigured to a higher output without a corresponding electrical upgrade. If the output can be increased without a physical change, size for the maximum possible output.
When 4 AWG Copper Is NOT Sufficient for EV Charging
True 80A Continuous Charging Load
As established above: an EV charger delivering 80A continuous output requires a 100A branch circuit and conductors rated for 100A.
4 AWG copper at 85A (75°C) does not meet this requirement.
Minimum NEC-compliant conductor for a true 80A EV charging circuit: 3 AWG copper (100A at 75°C).
Many designers and electricians select 2 AWG copper (115A at 75°C) for this application to provide thermal margin, reduce voltage drop on longer runs, and accommodate future load growth without rewiring.
High Ambient Temperature Installations
NEC Table 310.15(B)(1) requires ampacity correction when ambient temperature exceeds 30°C (86°F).
This is directly relevant for:
Garages in hot climates (summer temperatures regularly exceed 40°C in many US regions)
Outdoor conduit runs exposed to direct sun
Attic conduit runs where temperatures can reach 60°C–70°C
Mechanical rooms with elevated heat load
Temperature correction factors for 75°C-rated conductors:
Ambient Temperature | Correction Factor | 4 AWG Effective Ampacity |
30°C (86°F) | 1.00 | 85A |
35°C (95°F) | 0.94 | 79.9A |
40°C (104°F) | 0.88 | 74.8A |
45°C (113°F) | 0.82 | 69.7A |
50°C (122°F) | 0.75 | 63.8A |
At 40°C ambient — common in an uncooled garage in Phoenix, Las Vegas, or Dallas during summer — 4 AWG copper drops to approximately 74.8A effective ampacity. For a 64A charger on an 80A circuit, this may still be acceptable. For loads approaching 80A, it is not.
Always assess the actual ambient temperature at the installation location, not just the standard 30°C assumption.
Conduit Fill Derating (More Than Three Conductors)
NEC Table 310.15(C)(1) requires ampacity derating when more than three current-carrying conductors occupy the same raceway.
This applies when:
The EV charger conduit shares space with other circuit conductors
Multiple EV charging circuits run in a common raceway (common in commercial installations)
A neutral conductor is current-carrying in the installation context
Conduit fill derating factors:
Current-Carrying Conductors in Raceway | Derating Factor | 4 AWG Effective Ampacity |
1–3 | 1.00 | 85A |
4–6 | 0.80 | 68A |
7–9 | 0.70 | 59.5A |
10–20 | 0.50 | 42.5A |
At four to six conductors in a shared raceway, 4 AWG copper drops to 68A effective ampacity — below the 80A requirement even for the 64A charger configuration.
Combined derating (high ambient temperature plus conduit fill) compounds these reductions further and often requires upsizing by two conductor sizes or more.
When Future-Proofing Justifies Larger Conductors
Even where 4 AWG is technically code-compliant today, several scenarios justify installing larger conductors:
Second EV anticipated in the household within the next few years
Vehicle upgrade to a model with higher charging capability
Commercial installation where future tenant charging needs are unknown
Resale value — homes with larger EV charging infrastructure are increasingly valued in real estate transactions
The incremental material cost difference between 4 AWG and 2 AWG copper is modest relative to the total project cost. The labor cost of rewiring later — including opening walls, replacing conduit fill, or trenching for outdoor runs — is substantial.
Many experienced electricians recommend 2 AWG copper as the minimum for any EV charging installation where the conduit run is concealed, underground, or otherwise difficult to access for future replacement.
Voltage Drop: The Calculation That Ampacity Tables Don't Cover
Why Voltage Drop Is a Separate Design Constraint
Ampacity determines whether a conductor can carry current safely without overheating. Voltage drop determines whether the conductor can carry current efficiently without excessive resistive losses.
These are independent constraints. A conductor can be thermally adequate while producing unacceptable voltage drop — reducing charging efficiency, generating unnecessary heat, and potentially triggering charger fault conditions on sensitive equipment.
NEC Voltage Drop Recommendations
NEC Informational Note 1 to 210.19(A) recommends:
No more than 3% voltage drop on branch circuits
No more than 5% total voltage drop from service entrance to final outlet (feeder + branch combined)
These are recommendations, not mandatory requirements in most jurisdictions — but they represent sound engineering practice, and some AHJs adopt them as enforceable standards.
Voltage Drop Calculation for 4 AWG Copper
The standard voltage drop formula for single-phase circuits:
VD = (2 × K × I × L) / CM
Where:
K = resistivity constant (12.9 for copper)
I = current in amperes
L = one-way conductor length in feet
CM = conductor cross-sectional area in circular mils (4 AWG = 41,740 CM)
Simplified: VD = (2 × L × R × I) / 1000
Where R = conductor resistance in ohms per 1000 feet (4 AWG copper at 75°C ≈ 0.2778 Ω/1000 ft)
Example calculations for 4 AWG copper at 80A load:
One-Way Run Length | Voltage Drop (240V) | Voltage Drop % | Within 3% Limit? |
25 feet | 1.11V | 0.46% | ✅ Yes |
50 feet | 2.22V | 0.93% | ✅ Yes |
75 feet | 3.34V | 1.39% | ✅ Yes |
100 feet | 4.45V | 1.85% | ✅ Yes |
150 feet | 6.67V | 2.78% | ✅ Yes |
175 feet | 7.78V | 3.24% | ❌ Exceeds 3% |
200 feet | 8.90V | 3.71% | ❌ Exceeds 3% |
For runs up to approximately 165 feet at 80A on a 240V circuit, 4 AWG copper typically stays within the 3% NEC recommendation.
For longer runs, upsizing to 2 AWG or 1 AWG copper is advisable — both for voltage drop compliance and improved charging efficiency.
Practical Voltage Drop for Common EV Charging Scenarios
Many residential garages are located 50–100 feet from the main panel. In these cases, voltage drop is rarely the limiting factor for 4 AWG copper.
However, detached garage installations, driveway-end charging stations, and commercial parking structure feeders often involve runs of 150–300 feet or more. At these distances, voltage drop analysis is not optional — it is a primary sizing driver.
For commercial EV charging infrastructure specifically, voltage drop calculations should be performed for every circuit before conductor selection is finalized.
Wire Sizing Reference Guide for Level 2 EV Charger Installations
Complete Sizing Table for Common EVSE Configurations
This table covers the most common residential and commercial Level 2 EV charger configurations under standard NEC conditions (75°C terminals, 30°C ambient, no more than three current-carrying conductors in raceway).
Charger Output | × 1.25 | Min. Circuit | Min. Breaker | Min. Copper Wire | Min. Aluminum Wire |
16A | 20A | 20A | 20A | 12 AWG | 10 AWG |
24A | 30A | 30A | 30A | 10 AWG | 8 AWG |
32A | 40A | 40A | 40A | 8 AWG | 6 AWG |
40A | 50A | 50A | 50A | 8 AWG | 6 AWG |
48A | 60A | 60A | 60A | 6 AWG | 4 AWG |
64A | 80A | 80A | 80A | 4 AWG | 2 AWG |
80A | 100A | 100A | 100A | 3 AWG | 1 AWG |
96A | 120A | 120A | 125A | 1 AWG | 2/0 AWG |
This table assumes standard installation conditions. Always apply derating for elevated ambient temperature, conduit fill, and long runs.
4 AWG vs Adjacent Conductor Sizes for EV Charging
How 4 AWG Compares to 3 AWG and 2 AWG
Specification | 3 AWG Copper | 4 AWG Copper | 2 AWG Copper |
Diameter | 5.827 mm | 5.189 mm | 6.543 mm |
Cross-Section | 26.67 mm² | 21.15 mm² | 33.63 mm² |
75°C Ampacity | 100A | 85A | 115A |
Suitable for 64A Charger (80A Circuit) | ✅ Yes | ✅ Yes | ✅ Yes |
Suitable for 80A Charger (100A Circuit) | ✅ Yes (minimum) | ❌ No | ✅ Yes |
Voltage Drop (100 ft, 80A, 240V) | 3.70V (1.54%) | 4.45V (1.85%) | 2.94V (1.23%) |
Future-Proof for 96A Charger | ❌ No | ❌ No | ✅ Limited |
Relative Cost | Moderate | Lower | Higher |
Installation Difficulty | Moderate | Moderate | Slightly harder |
When to Choose Each Size
Choose 4 AWG copper when:
The charger is configured for 64A output or less
The circuit breaker is 80A
Standard installation conditions apply (no significant derating)
The run length is under 150 feet
No future upgrade to higher-output charging is anticipated
Choose 3 AWG copper when:
The charger delivers true 80A continuous output
A 100A circuit is required
Derating from conduit fill or ambient temperature reduces 4 AWG below required ampacity
Choose 2 AWG copper when:
True 80A charging on a 100A circuit with additional margin desired
Long runs where voltage drop management requires a larger conductor
Future-proofing for potential upgrade to 96A charging capability
The conduit run is concealed and rewiring would be disruptive
Common Wiring Mistakes in EV Charger Installations
Mistake 1: Sizing for Charger Output Without Applying the 125% Multiplier
The single most common EV charger wiring error.
An installer sees "80A charger" and selects wire rated for 80A — without recognizing that NEC continuous load rules require the circuit to be sized for 100A.
Prevention: Always start the calculation with: Charger output × 1.25 = minimum circuit ampacity. Work backward from there.
Mistake 2: Using the 90°C Ampacity Column Without Verifying Terminal Ratings
THHN wire has a 90°C conductor rating, giving 4 AWG a 95A ampacity at that temperature. Some installers apply this rating without checking whether the breaker and charger terminals support 90°C connections.
Most residential equipment is rated for 75°C. Using 90°C ampacity at 75°C-rated terminals violates NEC 110.14(C).
Prevention: Always verify terminal temperature ratings on the breaker, panel, and EVSE before selecting an ampacity column.
Mistake 3: Ignoring Derating in Hot Climates and Tight Conduit Fills
Standard NEC tables assume 30°C ambient and three or fewer conductors per raceway. These assumptions frequently do not hold in real installations.
Prevention: Check the actual expected ambient temperature and count current-carrying conductors in shared raceways before finalizing conductor size.
Mistake 4: Skipping Voltage Drop Analysis on Long Runs
Runs from main panels to detached garages, backyard charging pads, or commercial parking structures are frequently 100–300 feet or more. At these distances, voltage drop often governs conductor selection — not ampacity.
Prevention: Always calculate voltage drop for any run exceeding 75 feet at EV charging current levels.
Mistake 5: Installing the Smallest Code-Compliant Wire in Concealed Locations
Installing the minimum acceptable conductor size in a wall, underground conduit, or finished ceiling creates substantial future rewiring cost if charging needs increase.
Prevention: For any concealed or difficult-to-access conduit run, install at minimum one conductor size larger than the current code minimum. The incremental material cost is modest; the labor savings on a future upgrade are significant.
FAQ: 4 AWG Copper Wire and 80A EV Charger Sizing
Is 4 AWG copper wire sufficient for an 80A EV charger?
It depends on the charger's actual output current. If the charger delivers 64A continuous on an 80A circuit, 4 AWG copper (85A at 75°C) is typically code-compliant. If the charger delivers a true 80A continuous, the NEC requires a 100A circuit and 3 AWG copper minimum.
What size wire do I need for a true 80A Level 2 EV charger?
A true 80A continuous charger requires a 100A branch circuit. The minimum NEC-compliant conductor is 3 AWG copper (100A at 75°C). Many installers use 2 AWG copper for additional thermal margin and reduced voltage drop.
Can I use 4 AWG wire for a Tesla Wall Connector?
Tesla Wall Connectors are configurable. For configurations delivering up to 64A charging current on an 80A circuit, 4 AWG copper is commonly appropriate. Always consult the current Tesla Wall Connector Installation Manual for the specific configuration being installed and follow NEC 110.3(B).
What AWG wire do I need for an 80A breaker EV circuit?
The conductor must support the full 80A circuit rating — not just the charger output. 4 AWG copper (85A at 75°C) satisfies an 80A breaker under standard installation conditions and is the standard choice for 64A charger / 80A circuit configurations.
Does the distance from panel to charger affect wire size?
Yes, significantly. Longer runs increase voltage drop, which may require upsizing the conductor beyond what ampacity alone would specify. For runs exceeding 150 feet at EV charging current levels, always perform a voltage drop calculation before finalizing wire size.
Is aluminum wire acceptable for EV charging circuits?
Yes, with important conditions. Aluminum conductors must be properly sized (larger than copper for equivalent ampacity), terminated in AL/CU-rated lugs, and coated with anti-oxidant compound at all connections. For a 64A charger on an 80A circuit, 2 AWG aluminum is the typical minimum.
What is the minimum conduit size for 4 AWG EV charger wiring?
For a three-conductor 4 AWG THWN installation (two hots plus ground): ¾-inch EMT is typically sufficient. For longer pulls or larger conduit fill, 1-inch EMT improves wire-pulling ease and allows for future conductor upgrades without conduit replacement.
Technical Reference Sources
Conclusion
The answer to whether 4 AWG copper wire is suitable for an 80A EV charger depends entirely on what the 80A designation actually refers to.
For the most common configuration — a charger with 64A output on an 80A circuit — 4 AWG copper is typically code-compliant under standard NEC installation conditions. Its 85A ampacity at 75°C exceeds the 80A circuit requirement with adequate margin.
For a charger that truly delivers 80A continuously — requiring a 100A circuit under NEC continuous load rules — 4 AWG copper falls short. 3 AWG copper is the minimum, and 2 AWG copper is the more practical and future-proof choice.
Beyond the basic ampacity question, real installations must account for:
Terminal temperature ratings that govern which ampacity column applies
Ambient temperature derating in hot climates and warm installation environments
Conduit fill derating when multiple conductors share a raceway
Voltage drop on runs exceeding 100–150 feet
Future expandability when the conduit is concealed or difficult to access
Getting conductor sizing right on an EV charging installation is not bureaucratic box-checking — it is the foundation of a safe, efficient, and durable electrical system that will serve a household or commercial facility for decades.
When in doubt, upsize. The incremental cost of one conductor size larger is always less than the cost of returning to rewire.
Installing an EV charger or designing a commercial EV charging facility?
Whether you are a homeowner finalizing your Level 2 charger installation or an electrical contractor specifying conductors for a multi-port commercial EVSE deployment, getting conductor sizing right from the start protects your installation, your customers, and your professional reputation.
For commercial EV charging projects, fleet electrification infrastructure, or solar-plus-EV integrated systems requiring certified cable with full technical documentation and compliance support — work with manufacturers and suppliers that provide conductor ampacity data, installation specifications, and application engineering assistance.
Comments
