What Is an Earth Cable? Complete Guide to Grounding Wire, Sizes, Colors & Applications

An earth cable is a conductor used as part of an electrical grounding or earthing system to provide a safe path for fault current and help protect people and equipment from electrical hazards. Depending on the country and electrical terminology being used, it may also be called an earth wire, grounding wire, ground wire, grounding cable, protective earth conductor, or PE conductor.

Unlike a phase conductor, an earth wire is not normally intended to carry the circuit's regular operating current. Its protective role becomes especially important when insulation fails or an exposed conductive part accidentally becomes energized. A properly designed protective conductor helps the protective system disconnect the faulty circuit and limit dangerous touch voltages.

The International Electrotechnical Commission addresses earthing arrangements and protective conductors through IEC 60364-5-54, while IEC 60445 establishes identification principles for designated conductors.

This FRCABLE guide explains what an earth cable does, how grounding works, common earth wire colors and constructions, how earth cable size is selected, and what to consider when choosing a grounding cable for residential, commercial, industrial, and solar applications.

What Is an Earth Cable?

An earth cable is a protective electrical conductor that connects exposed conductive parts of electrical equipment to the earthing system or another appropriate protective earthing point.

Its purpose is safety rather than ordinary power transmission.

In normal operation, exposed metal parts such as an equipment enclosure should not be energized. If insulation fails and a live conductor touches that enclosure, however, the metalwork can develop a dangerous voltage.

A protective earth conductor provides part of the intended fault-current path so that the electrical protection system can respond appropriately.

IEC 60364-5-54 specifically addresses earthing arrangements, protective conductors and protective bonding conductors as part of the safety requirements for low-voltage electrical installations.

What Is an Earth Wire?

An earth wire is another commonly used term for a conductor serving an earthing or grounding function.

Terminology depends heavily on region:

• Earth / earthing is widely used in IEC-oriented and British-influenced markets.

• Ground / grounding is common in North American terminology.

• PE conductor means protective earth conductor in IEC-oriented technical documentation.

• Protective conductor is a broader technical expression used in electrical standards.

For SEO and everyday discussion, earth wire and ground wire are often used to describe closely related concepts. In engineering specifications, however, the exact function of the conductor should always be identified rather than assumed from terminology alone.

What Does an Earth Wire Do?

The most important function of an earth wire is to contribute to protection against electric shock under fault conditions.

A protective conductor may:

• connect exposed conductive parts to the earthing arrangement;

• provide a low-impedance fault-current path;

• support operation of protective devices;

• help reduce dangerous touch voltage;

• connect equipment to protective bonding arrangements;

• maintain electrical continuity between relevant conductive parts.

The protective conductor is therefore part of an overall safety system. It should not be viewed as a standalone component that makes an installation safe by itself. Earthing arrangement, protective devices, conductor sizing, connections, fault-loop characteristics, bonding and installation rules all need to work together.

How Does an Earth Cable Work?

The easiest way to understand an electrical earth cable is to consider what happens during an insulation fault.

Imagine a machine with a conductive metal enclosure. Under normal conditions, the live conductors are insulated from the enclosure.

If that insulation is damaged, a live conductor could contact the metal casing.

Without an appropriate protective arrangement, touching the casing could expose a person to hazardous voltage.

The Fault Current Path

When the equipment enclosure is connected to a correctly designed protective earth conductor, the conductor helps establish the intended path for fault current.

The resulting fault condition can then allow the installation's protective measures to operate according to the system design.

This is one reason conductor impedance matters. A protective conductor must not simply "exist"; its electrical continuity, cross-sectional area, connection quality and routing all matter.

Schneider Electric's IEC-based Electrical Installation Guide notes that PE conductor sizing is closely related to fault conditions and provides both simplified and adiabatic methods based on IEC 60364-5-54.

Earth Cable Is Part of a System

A common mistake is to think:

"If an earth wire is connected, the equipment is safe."

That is too simplistic.

Effective electrical protection can depend on:

• the grounding or earthing system;

• PE conductor continuity;

• fault-loop impedance;

• the type of protective device;

• disconnection requirements;

• bonding;

• the condition of terminals and connections;

• conductor material and cross-sectional area;

• applicable national and local electrical rules.

For that reason, installation and final conductor sizing should be carried out according to the electrical design, applicable standards and local code requirements.

Earth Wire vs Ground Wire vs Neutral Wire

These terms are frequently mixed together, but they should not automatically be treated as interchangeable conductors.

Earth Wire vs Ground Wire

In general conversation, earth wire and ground wire often refer to the same basic safety concept.

"Earth" is more common in many IEC-oriented countries, while "ground" is especially common in North America.

For example:

earth cable → grounding cableearth wire → ground wireprotective earth → protective grounding

The underlying idea is to provide an electrical connection associated with protective grounding or earthing.

However, regional standards can define grounding terminology differently, so technical documentation should use the terminology required by the project specification.

Earth Wire vs Neutral Wire

An earth wire and neutral wire perform different functions.

A neutral conductor may form part of the normal current-carrying circuit. A protective earth conductor is primarily provided for protective purposes and normally should not be carrying the ordinary load current of the circuit.

Feature	Earth / PE Conductor	Neutral Conductor
Primary purpose	Electrical protection	Circuit return/reference function
Normal load current	Normally no	May carry operating current
Common IEC identification	Green-and-yellow for PE	Blue identification is used for designated neutral conductors under IEC rules
Typical connection	Exposed conductive parts / earthing system	Neutral point of the electrical system
Main safety role	Provides protective fault path	Not a substitute for a PE conductor

IEC 60445 provides general rules for identifying designated conductors and makes color-identification requirements part of conductor identification practice.

Never assume that neutral can simply replace earth. The relationship between neutral and protective earth depends on the earthing arrangement, and their downstream functions and connection rules must comply with the applicable electrical standard.

Grounding vs Bonding

Grounding and bonding are closely related but not identical.

Grounding or earthing establishes the relevant electrical connection to the earthing arrangement.

Protective bonding connects conductive parts together to reduce potentially dangerous voltage differences between them.

This distinction becomes especially important in switchboards, machinery, industrial facilities and photovoltaic installations where multiple metallic components may require electrical continuity.

IEC 60364-5-54 covers not only protective conductors but also protective bonding conductors as part of the overall installation safety framework.

Types of Earth Cables and Grounding Wires

There is no single construction called "the earth cable."

The correct conductor depends on the electrical system, environment, mechanical requirements, installation method and applicable standards.

Insulated Earth Cable

An insulated earthing cable uses a conductive core surrounded by insulation.

Copper is widely used because of its electrical conductivity, mechanical performance and suitability for termination.

Insulated protective conductors are particularly useful where the conductor needs physical separation, clear identification or routing through equipment, enclosures or cable-management systems.

Bare Copper Ground Wire

A bare copper conductor does not have the conventional polymer insulation surrounding an insulated wire.

Bare conductors can be used in certain grounding, bonding and earthing arrangements where permitted by the relevant installation rules.

However, bare and insulated conductors are not automatically interchangeable. Environmental exposure, corrosion, mechanical protection, routing and the required function need to be evaluated before selection.

Solid vs Stranded Ground Wire

Earth conductors may use solid or stranded construction.

A solid conductor is structurally simple and may suit fixed applications where flexibility is not important.

A stranded copper conductor consists of multiple copper strands and is generally more flexible. Fine-stranded conductors can be especially useful in electrical panels, machinery and equipment where tight bending or frequent routing around components is required.

For flexible protective-earth applications, FRCABLE currently offers an H07V-K 450/750V grounding cable using Class 5 stranded copper construction. The product is positioned for protective-earth wiring in applications including panels, switchboards, machinery and solar-related electrical systems where that cable type is appropriate.

Copper vs Aluminum Earth Conductors

Copper and aluminum are both used as electrical conductor materials, but they are not dimensionally interchangeable.

Copper provides high conductivity for a given cross-sectional area and is extensively used for PE conductors.

Aluminum can offer weight and material-cost advantages in suitable larger installations, but conductor dimensions, terminals, connection hardware, oxidation behavior and installation requirements must be considered.

IEC-based PE sizing guidance also distinguishes between copper and aluminum in certain conductor requirements, reinforcing that material choice affects sizing and installation decisions.

What Color Is an Earth Wire?

In IEC-oriented installations, the most recognizable answer is green and yellow.

The green-and-yellow combination identifies the protective conductor under IEC conductor-identification rules.

IEC 60445:2021 covers conductor identification and states that provisions relating to identification colors for designated conductors are requirements rather than merely recommendations. The IEC Webstore currently also lists a consolidated version incorporating a 2026 amendment.

Why Is Earth Wire Green and Yellow?

Distinctive identification helps installers, inspectors and maintenance personnel distinguish the protective conductor from other conductors.

For an earth cable used as a PE conductor, clear identification is particularly important because incorrect connection can undermine the protective function of the installation.

A green yellow earth wire should therefore be treated as a safety conductor rather than as an available colored wire for an unrelated circuit function.

Can Ground Wire Colors Be Different?

Yes, depending on the country, installation age, equipment standard and local electrical code.

This is why an engineer or electrician should never identify the function of an unfamiliar conductor based solely on color.

Older installations may follow previous color schemes, while countries outside IEC-based systems can apply different requirements.

Before modifying an existing installation:

1. Check the applicable electrical standard.

2. Review wiring diagrams and circuit documentation.

3. Verify conductor function electrically where appropriate.

4. Confirm the grounding arrangement.

5. Do not rely on insulation color alone.

For international cable buyers, specifying the required conductor identification, applicable standard and destination market when ordering helps prevent compatibility problems.

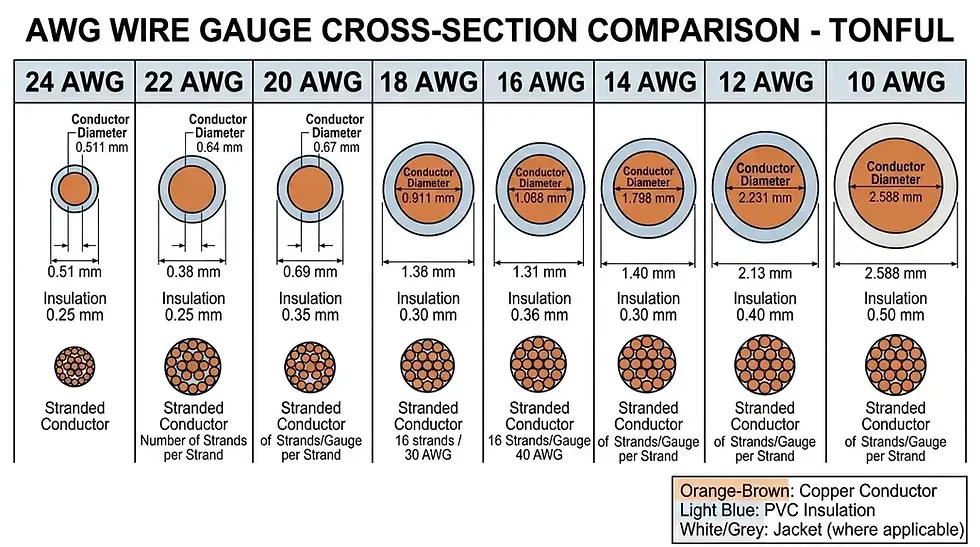

Earth Cable Size: How Do You Choose the Correct PE Conductor?

Choosing an earth cable size is more complex than simply matching a cable to a load-current table.

A phase conductor is primarily sized around factors such as operating current, installation conditions and voltage drop. A protective earth conductor must also be capable of safely withstanding the expected fault conditions and supporting the protective scheme.

IEC 60364-5-54 addresses protective-conductor selection, while IEC-based engineering guidance provides both a simplified relationship to the phase-conductor size and an adiabatic calculation method.

IEC-Based Simplified PE Conductor Sizing

For conductors of the same material, Schneider Electric's IEC-based guide summarizes the simplified method as follows:

Phase Conductor Cross-Section	Simplified PE Conductor Relationship
S ≤ 16 mm²	PE size = phase conductor size
16 < S ≤ 35 mm²	PE size = 16 mm²
S > 35 mm²	PE size = approximately half the phase conductor size

These values are a design reference, not a universal purchasing chart. The guide includes additional conditions for conductor material, mechanical protection, PEN conductors and particular earthing arrangements.

For example, the same IEC-based guide notes minimum cross-sectional considerations for separately installed PE conductors depending on whether mechanical protection is provided.

The Adiabatic Method

Where appropriate, an engineer may determine protective-conductor size using an adiabatic relationship involving fault current, fault duration and a material/insulation factor.

The commonly expressed relationship is:

S = √(I²t) / k

where:

• S = required conductor cross-sectional area;

• I = prospective fault current;

• t = disconnection time;

• k = factor related to conductor and insulation characteristics.

IEC-based guidance provides this as an alternative to simplified sizing.

The important practical point is that earth cable size is related to fault performance, not just the equipment's normal operating current.

How to Choose Earth Cable Size

A professional selection process should normally consider the following:

1. Identify the earthing system. Determine the applicable grounding arrangement and PE function.

2. Determine the circuit and phase-conductor size. This establishes an important reference for protective-conductor selection.

3. Establish conductor material. Copper and aluminum cannot always use identical cross-sectional values.

4. Evaluate prospective fault current and disconnection conditions. The conductor must survive the required fault event.

5. Check mechanical protection and installation method. Separate or exposed conductors may be subject to additional minimum requirements.

6. Verify applicable standards and local code. National requirements may modify or supplement IEC-based methods.

7. Check terminals and connections. The selected conductor must be compatible with the actual equipment and termination system.

For projects that need a more detailed calculation, FRCABLE recommends treating Earth Cable Size Chart and How to Calculate Earth Cable Size as separate technical topics rather than relying on a generic current-capacity table.

Where Are Earth Cables Used?

Grounding cables appear across almost every major type of low-voltage electrical installation.

The exact conductor construction can change significantly between applications.

Residential and Commercial Electrical Installations

Protective conductors are used in building electrical systems to connect exposed conductive parts and support the protective measures designed into the installation.

Applications can include:

• distribution boards;

• socket circuits;

• electrical appliances;

• HVAC equipment;

• metallic enclosures;

• building electrical systems;

• protective bonding arrangements.

The cable must be selected according to the applicable building wiring rules rather than simply by choosing a familiar green-and-yellow wire.

Switchboards and Electrical Panels

Inside switchboards and control panels, an insulated flexible PE cable is often useful because it can be routed between the PE terminal or earth bar and metallic equipment parts.

Flexible stranded copper conductors can simplify routing in densely populated panels and cabinets.

For this type of application, conductor flexibility, stripping quality, terminal compatibility, conductor resistance and reliable identification can be as important as nominal cross-sectional area.

Industrial Machinery

Industrial machines often contain motors, drives, control systems and metallic enclosures that need appropriate protective connections.

The grounding conductor may need to tolerate:

• vibration;

• tight routing;

• frequent termination;

• oils or industrial contaminants;

• elevated temperatures;

• mechanical movement around equipment;

• demanding maintenance conditions.

This makes cable construction and insulation performance important selection criteria in addition to conductor size.

Solar PV Systems

Grounding is also an important consideration in photovoltaic installations, although the solar DC power cable and protective grounding conductor perform different jobs.

A PV cable such as H1Z2Z2-K or another appropriately approved photovoltaic cable is intended for photovoltaic power circuits according to its relevant specification.

A grounding or bonding conductor, by contrast, is used for protective grounding or bonding functions.

Do not assume that a standard PE conductor can replace a purpose-designed PV power cable—or vice versa.

FRCABLE currently lists both photovoltaic cable products and a 450/750V H07V-K grounding cable, allowing buyers to specify different cable types according to their actual circuit function.

This distinction is particularly useful when planning connections around solar inverters, electrical cabinets, switchboards and other parts of a PV installation where a dedicated PE conductor may be required according to the system design.

How to Choose the Right Grounding Cable

When purchasing a grounding cable, focusing only on price per meter can lead to poor specification decisions.

A reliable product needs to match the electrical, mechanical and regulatory requirements of the project.

Key Selection Factors

Consider:

• Conductor material: copper or aluminum according to the electrical design;

• Cross-sectional area: sized for the applicable protective function;

• Conductor flexibility: solid, stranded or fine-stranded according to installation needs;

• Insulation: appropriate material and voltage classification;

• Color identification: correct PE identification for the destination market;

• Temperature requirements: appropriate for the installation environment;

• Mechanical protection: based on routing and exposure;

• Chemical and environmental resistance: where industrial exposure exists;

• Terminal compatibility: suitable for the strand class and conductor size;

• Applicable standard: IEC, national or project-specific requirements;

• Manufacturer documentation: technical data should clearly identify conductor construction and relevant ratings.

Common Earth Cable Selection Mistakes

Several mistakes repeatedly create avoidable problems.

1. Choosing the cable only by color

Green-and-yellow insulation does not tell you everything about conductor material, size, strand class, voltage rating or applicable standard.

2. Selecting PE size only from normal load current

Protective-conductor selection depends on fault conditions and the protection system, not simply continuous load current.

3. Treating neutral and earth as interchangeable

They perform different functions and must be connected according to the specified earthing arrangement.

4. Ignoring conductor material

A 16 mm² copper conductor and a 16 mm² aluminum conductor do not have identical electrical characteristics.

5. Ignoring mechanical installation conditions

Routing, protection, bending and termination requirements can affect the appropriate construction.

6. Using a grounding cable as a PV power cable

A protective grounding conductor does not automatically meet the environmental, voltage and construction requirements applicable to exposed photovoltaic DC power wiring.

7. Buying before confirming the applicable standard

International projects can involve different electrical regulations. The required cable should be specified for the destination market and actual application.

Frequently Asked Questions About Earth Cables

What is an earth cable?

An earth cable is a conductor used in an electrical earthing or grounding system for protective purposes. It connects relevant exposed conductive parts to the protective earthing arrangement and helps provide an intended path for fault current.

What is another name for an earth cable?

Depending on the region and context, it may be called an earth wire, earthing cable, grounding cable, ground wire, protective conductor, protective earth conductor or PE conductor.

Technical specifications should identify the conductor's actual function rather than relying only on regional terminology.

What does an earth wire do?

An earth wire contributes to electrical safety by providing a protective connection for exposed conductive parts. During certain faults, it helps establish a fault-current path that allows the protection system to operate as designed.

Its effectiveness depends on correct sizing, continuity, impedance, connections and the overall protective arrangement.

How does an earth wire work?

Under normal conditions, a PE conductor is not intended to carry the circuit's regular load current.

If an insulation fault energizes an exposed conductive enclosure, the protective conductor forms part of the designed fault-current path. The protection system can then respond according to its design and applicable disconnection requirements.

What color is an earth wire?

Under IEC-oriented conductor identification, green-and-yellow is associated with the protective conductor.

IEC 60445 establishes identification rules for designated conductors, although wiring practices can differ by jurisdiction and installation age. Always verify the applicable local code before working on an electrical installation.

Is earth wire the same as ground wire?

In everyday use, the expressions are often used for the same general concept.

"Earth" is common in many IEC-oriented markets, while "ground" is widely used in North American terminology.

Technical definitions can vary, so project documentation and the governing electrical standard should take precedence.

Is earth wire the same as neutral wire?

No.

A neutral conductor can carry normal circuit current, while the protective earth conductor is primarily a safety conductor and normally does not carry ordinary load current.

They should never be treated as automatically interchangeable.

What size earth cable do I need?

There is no single earth cable size suitable for every installation.

Selection can depend on:

• phase-conductor size;

• conductor material;

• prospective fault current;

• fault duration;

• earthing arrangement;

• installation method;

• mechanical protection;

• applicable electrical regulations.

IEC-based methods include simplified sizing relative to the phase conductor and an adiabatic calculation based on fault conditions.

Is a bigger earth cable always better?

Not necessarily.

A larger conductor can reduce resistance and increase fault-current withstand capability, but good engineering is about selecting the correct conductor rather than automatically installing the largest available size.

Oversizing can increase cost, weight and termination difficulty without solving problems elsewhere in the grounding system.

Can copper wire be used as an earth wire?

Yes. Copper is extensively used for protective conductors because of its conductivity and practical electrical and mechanical properties.

The conductor still needs the correct cross-sectional area, construction, identification and installation method for the project.

Can H07V-K be used as a grounding cable?

H07V-K is a flexible PVC-insulated single-core conductor that can be used for protective-earth wiring where its ratings and applicable standards match the installation.

FRCABLE's current H07V-K grounding cable is rated 450/750V, uses Class 5 stranded copper, and is offered for grounding applications including panels, switchboards, machinery and appropriate solar-related electrical installations.

What is the difference between a PV cable and a grounding cable?

A PV cable is designed to carry electrical power in photovoltaic circuits according to the cable's applicable PV specification.

A grounding cable is used for protective grounding or bonding.

Although both may contain copper conductors, their electrical function, insulation system, construction, voltage rating and applicable standards can be different.

Selecting cable according to circuit function first is therefore more reliable than selecting it by conductor size or appearance alone.

Conclusion: Earth Cable Selection Is About the Whole Protection System

An earth cable may look like a simple conductor, but its role in an electrical installation is fundamental.

Whether it is described as an earth wire, grounding wire, grounding cable or protective earth conductor, its purpose is to support the protective earthing system and provide reliable electrical continuity under fault conditions.

The correct earth cable is not determined by one factor alone.

You need to consider:

conductor material + cross-sectional area + fault conditions + insulation + flexibility + identification + installation method + terminals + applicable electrical standards.

For IEC-oriented installations, IEC 60364-5-54 provides an important framework for earthing arrangements and protective conductors, while IEC 60445 addresses conductor identification principles.

For buyers, installers and engineers, the most important rule is therefore simple:

Choose an earth cable according to its protective function and the electrical system—not simply by color, price or nominal cable size.

Need a Reliable Earth Cable for Your Project?

FRCABLE supplies grounding and photovoltaic cable solutions for international electrical and solar applications.

For flexible protective-earth wiring, FRCABLE offers H07V-K 450/750V grounding cable with Class 5 stranded copper conductor, including solutions intended for electrical panels, switchboards, machinery and relevant solar grounding applications.

If you are sourcing earth cable for a project, send FRCABLE your:

• required conductor size;

• cable construction;

• application;

• quantity;

• destination market;

• applicable standard or project specification.

Contact FRCABLE to request technical specifications, product information and a quotation for your grounding cable requirements.
