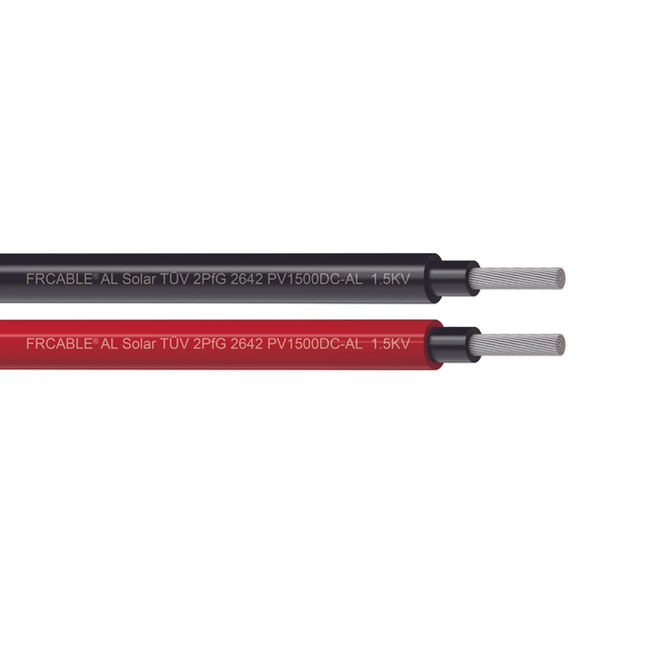

FRCABLE AL Solar TÜV 2PfG 2642 PV1500DC-AL 1.5KV
-

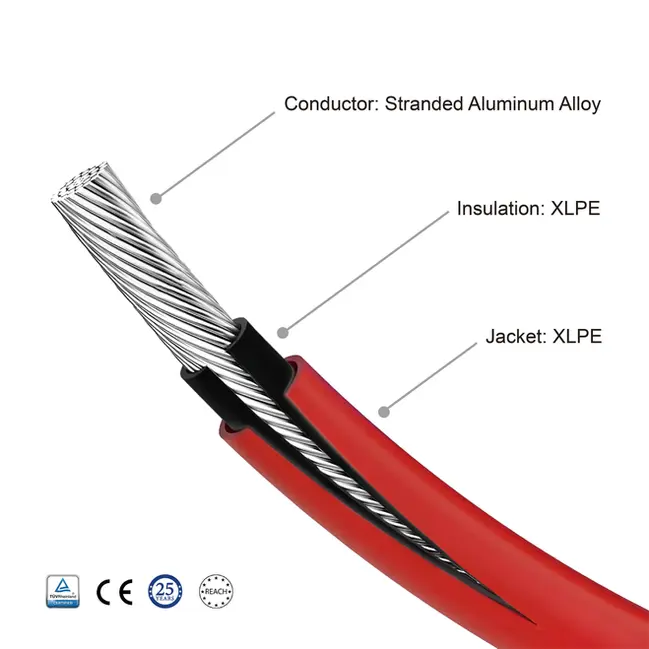

Conductor:
-
Insulation:
-
Jacket:
-
Rated temperature:
-
Rated voltage:
Stranded Aluminum Alloy, class 5
Cross-linked compound, Black
Cross-linked compound, Black or Red
-40℃ to 90℃
1500V DC
Application
The FRCABLE® DC Aluminum Solar cable is TÜV 2PFG 2642 certified and designed for the connection of PV panels.Engineered to withstand harsh outdoor environments, the H1Z2Z2-K cable boasts superior UV resistance, Ozone resistance,and water resistance, ensuring a reliable and long-lasting connection within your solar power system.
Advantages
-
Electron Beam Cross Linked compound, XLPE/XLPE.
-
Resistance against UV, Ozone, Fluids, Oil, Salt & General Weathering.
-
Halogen Free, Flame Retardant, Low Smoke Emission.
-
25 years of lifetime expectancy.
-
RoHS-compliant according to EU norms.
-
Higher water resistance.
Technical Data
-
Operation temperature: -40℃ to 120℃
-
Ambient temperature: -40℃ to 90℃
-
Nominal voltage: AC U0/U 1000/1000 V、DC U0/U 1500/1500 V
-
Max permitted operation voltage: DC 1800V
-
Test voltage: 6500 V
Item Data
Item description
Part No.
Cross Section
(mm²)
Color
AWG
(approx)
Insulation Thickness
(mm)
Jacket Thickness
(mm)
Outer Dia
(mm)
Conductor Resistance
Max. mΏ/m
11008040705
1 x 4.0 mm²
Black
12
0.70
0.80
5.6±0.2
7.20
11008040806
1 x 4.0 mm²
Red
12
0.70
0.80
5.6±0.2
7.20
11008060707
1 x 6.0 mm²
Black
10
0.70
0.80
6.2±0.2
4.80
11008060808
1 x 6.0 mm²
Red
10
0.70
0.80
6.2±0.2
4.80
11008010709
1 x 10 mm²
Black
8
0.80
0.80
7.3±0.2
3.08
11008010810
1 x 10 mm²
Red
8
0.80
0.80
7.3±0.2
3.08
