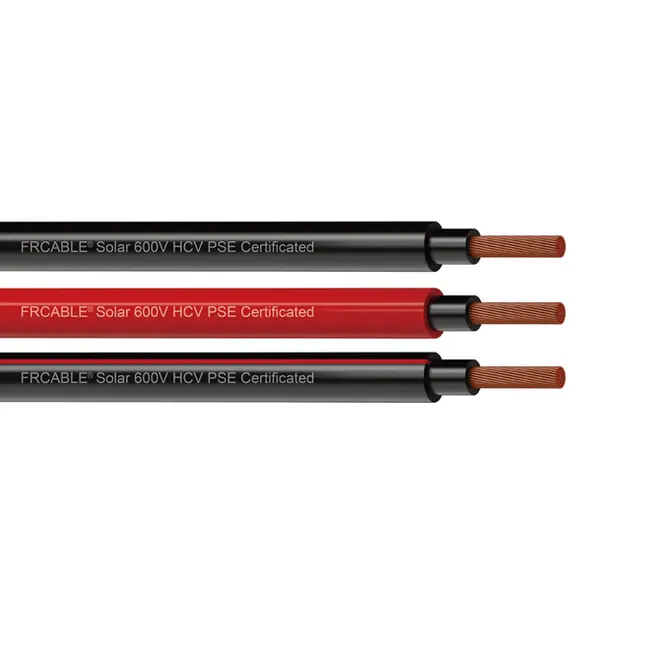

FRCABLE Solar 600V HCV PSE Certificated
-
Conductor:
-
Insulation:
-
Jacket:
-
Rated temperature：
Stranded bare copper
Cross-linked compound
Heat resistance PVC, Black
-15℃ to 90℃
-
Rated voltage：
600V DC
Application
The FRCABLE® DC Solar cable is HCV PSE certified and designed for the connection of PV panels.Engineered to withstand harsh outdoor environments, the HCV PSE cable boasts superior UV resistance, Ozone resistance, and water resistance, ensuring a reliable and long-lasting connection within your solar power system.
Advantages
-
Electron Beam Cross Linked compound, XLPE.
-
Resistance against UV, Ozone, Oil & General Weathering.
-
Flexible cable for easy installation
Technical Data
-
Rated temperature: -15℃ to 90℃
-
Rated voltage: 600V DC
-
Tested voltage: 1500V AC
-
Flame Test: JIS C 3005
Item Data
Item description
Part No.
Color
Cross Section
(mm²)
Insulation Thickness
(mm)
Jacket Thickness
(mm)
Outer Dia
(mm)
Conductor Resistance
Max. mΏ/m
31007120701
Black
1 x 2.0 mm²
0.80
1.50
6.30±0.1
9.24
31007135703
Black
1 x 3.5 mm²
0.80
1.50
6.80±0.1
5.2
31007155705
Black
1 x 5.5 mm²
1.00
1.50
7.80±0.1
3.33
31007180707
Black
1 x 8.0 mm²
1.00
1.50
8.30±0.1
2.31
