FRCABLE Energy Storage ES-RYJYJ-125 TÜV 1.5KV
-

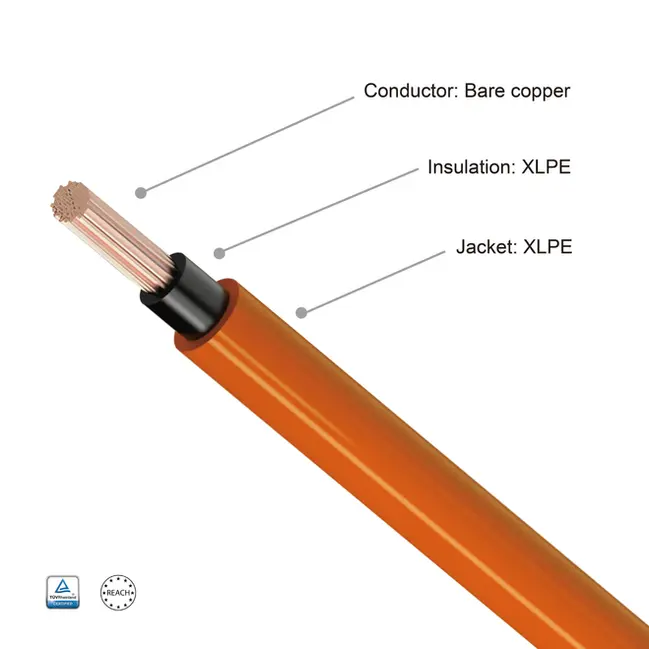

Conductor:
-
Insulation:
-
Jacket:
-
Rated temperature:
-
Rated voltage:
Stranded Bare copper
Cross-linked compound, Black
Cross-linked compound, Black or Orange
-40℃ to 125℃
1500V DC
Application
The FRCABLE® energy storage cable is TUV-certified and specifically engineered for high-performance electrical connections within an energy storage system.This cable is designed to ensure safe and efficient power transmission between battery packs, inverters, and grid interfaces.
Advantages
-
High currents and voltages.
-
High flame retardant.
-
Low smoke halogen-free.
-
Resistan to battery acid.
-
High flexibility.
-
Easy to install.
Technical Data
-
Rated temperature: -40℃ to 125℃
-
Rated voltage: 1500V
-
Min. Bending Radius: 5 x O.D.
Item Data
Item description
Part No.
Cross Section
(mm²)
Color
AWG
(approx)
Insulation Thickness
(mm)
Jacket Thickness
(mm)
Outer Dia
(mm)
Conductor Resistance
Max. mΏ/m
11007140705
1 x 4.0 mm²
Black
12
0.80
0.70
5.4±0.2
5.09
11007140806
1 x 4.0 mm²
Red
12
0.80
0.70
5.4±0.2
5.09
11007160707
1 x 6.0 mm²
Black
10
0.80
0.70
6.0±0.2
3.39
11007160808
1 x 6.0 mm²
Red
10
0.80
0.70
6.0±0.2
3.39
11007110709
1 x 10 mm²
Black
8
1.00
0.70
7.5±0.2
1.95
11007110810
1 x 10 mm²
Red
8
1.00
0.70
7.5±0.2
1.95
11007116711
1 x 16 mm²
Black
6
1.10
0.70
9.5±0.2
1.24
11007116812
1 x 16 mm²
Red
6
1.10
0.70
9.5±0.2
1.24
11007125713
1 x 25 mm²
Black
4
1.30
0.80
11.4±0.2
0.80
11007125814
1 x 25 mm²
Red
4
1.30
0.80
11.4±0.2
0.80
